EDM-500 Dielectric Fluid for EDM



  • High flash point and dielectric strength
  • Low viscosity, power factor and acid value
  • Resists thermal degradation
  • Thermal degradation up to 400 amps
  • Transparent, fluorescent green formula
  • Virtually odorless
  • No aromatics


  • Electric Discharge Machining

Packaging Details

Part No. US Net Contents Container Type Units/Case Case Weight Shelf Life
72055 5 gal pail 1 33 lbs 2 years

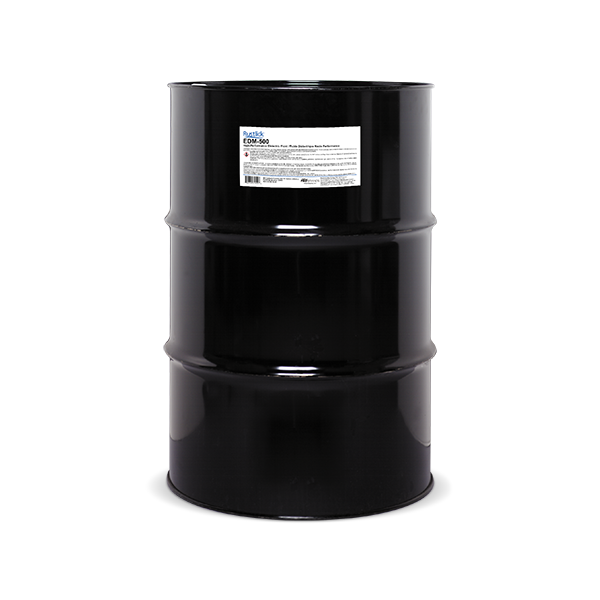

72555 55 gal drum 1 395 lbs 2 years

Search for discontinued products in the SDS Finder


Appearance/physical state Liquid
Odor Near odorless
Melting point/freezing point No data available
Boiling point/range 300 °F / 149 °C
Vapor pressure No data available
Partition coefficient No data available
Percent volatile No data available
Flammability limit No data available
Propellant N/A
VOC Content None
Color Transparent, Fluorescent Green
Flash point >200 °F / >93 °C
Relative density No data available
Evaporation rate <1
Vapor density >1
Auto-ignition temperature No data available
Viscosity No data available
Specific Gravity (water=1) 0.8
Temperature Range °F(°C) No data available
4-Ball Weld Load No data available
