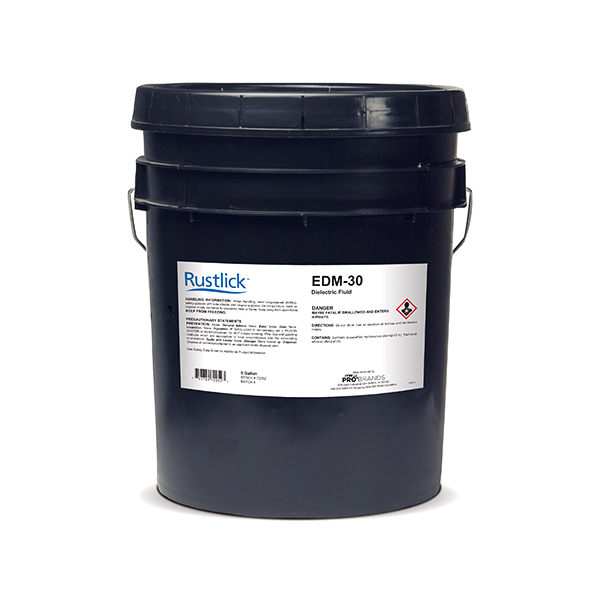

EDM-30 Dieletric Fluid for EDM
- Non-Aerosol SDS
- Technical Data Sheet
- Certificate of Conformance
Rustlick™ EDM-30 is a quality EDM fluid/dielectric oil for Electric Discharge Machining. It has an allowable burn rate up to 150 amps and should be used only with paper cartridge filters.
FEATURES
- High flash point
- Low viscosity
- Reduces smoke and odor
- Burn rate up to 150 amps
APPLICATIONS
|
Packaging Details
| Part No. US | Net Contents | Container Type | Units/Case | Approximate Case Weight | Shelf Life |
|---|---|---|---|---|---|
| 72052 | 5 gal | pail | 1 | 36 lbs | 2 years |
| 72552 | 55 gal | drum | 1 | 411 lbs | 1 year |
Search for discontinued products in the SDS Finder
Properties
| Appearance / Physical State | Liquid. |
| Color | Clear. |
| Odor | Mild. |
| Melting / Freezing Point | Not available. |
| Boiling Point / Range | 300.2 °F (149 °C) |
| Flash Point | > 93.0°C Pensky-Martens Closed Cup |
| Evaporation Rate | <1 |
| Flammability | Not applicable. |
| Vapor Pressure | Not available. |
| Vapor density | >1 |
| Water Solubility | Insoluble. |
| Partition Coefficient | Not available. |
| Auto-Ignition Temperature | Not available. |
| Viscosity | 3.5 cSt @ 40°C |
| Specific Gravity | 0.82 |
| Density | 6.85 lb/gal |
| Total Chlorine | 0% |
