GN64-45 Synthetic Stamping Fluid

Metal Mates

Metal Mates GN-64 is an environmentallyconscious synthetic stamping and forming lubricant developed with technologically advanced non-chlorinated extreme pressure and boundary additives.
This product improves die life, is easy to clean and doesn’t require


  • Versatile over many applications
  • No cleaning required before welding
  • Economical
  • Improves die life
  • Easy to clean
  • High corrosion protection


  • Spray, brush, roll coat or drip. Good on multiple substrates, please call for consultation on specific applications.

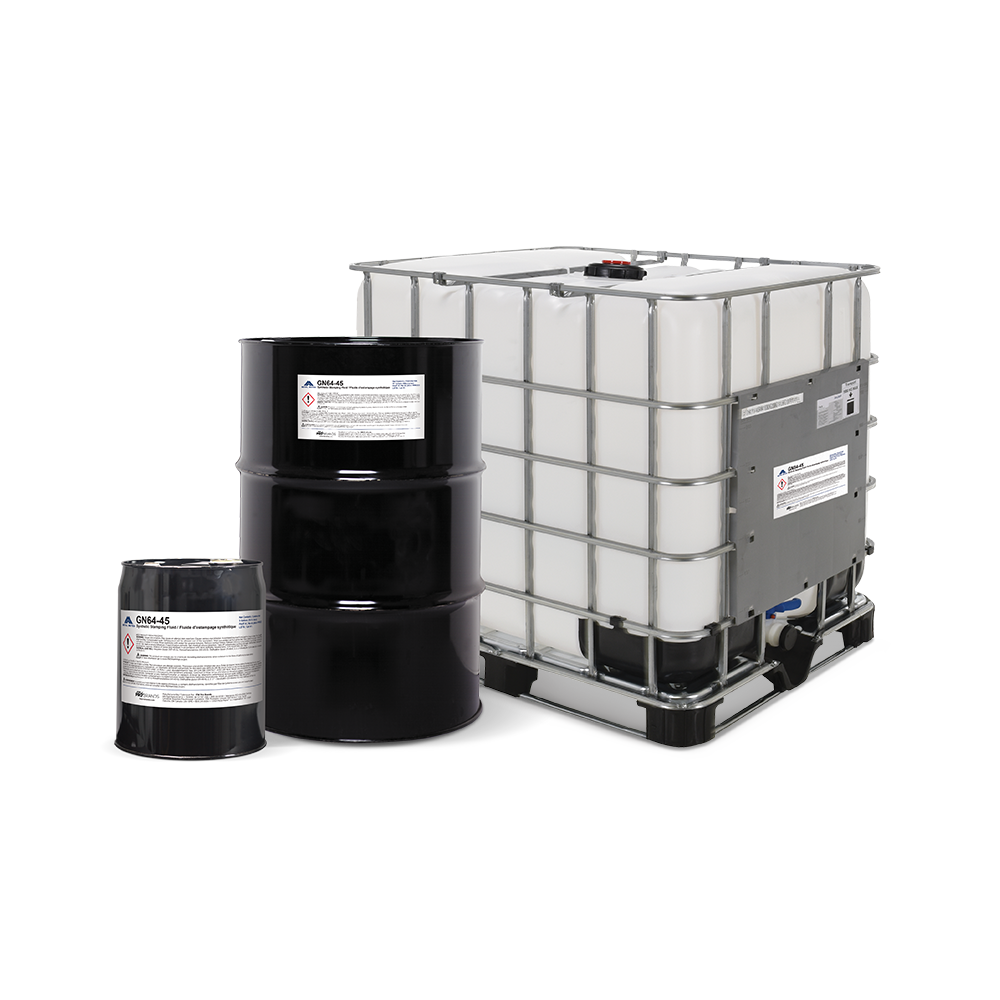

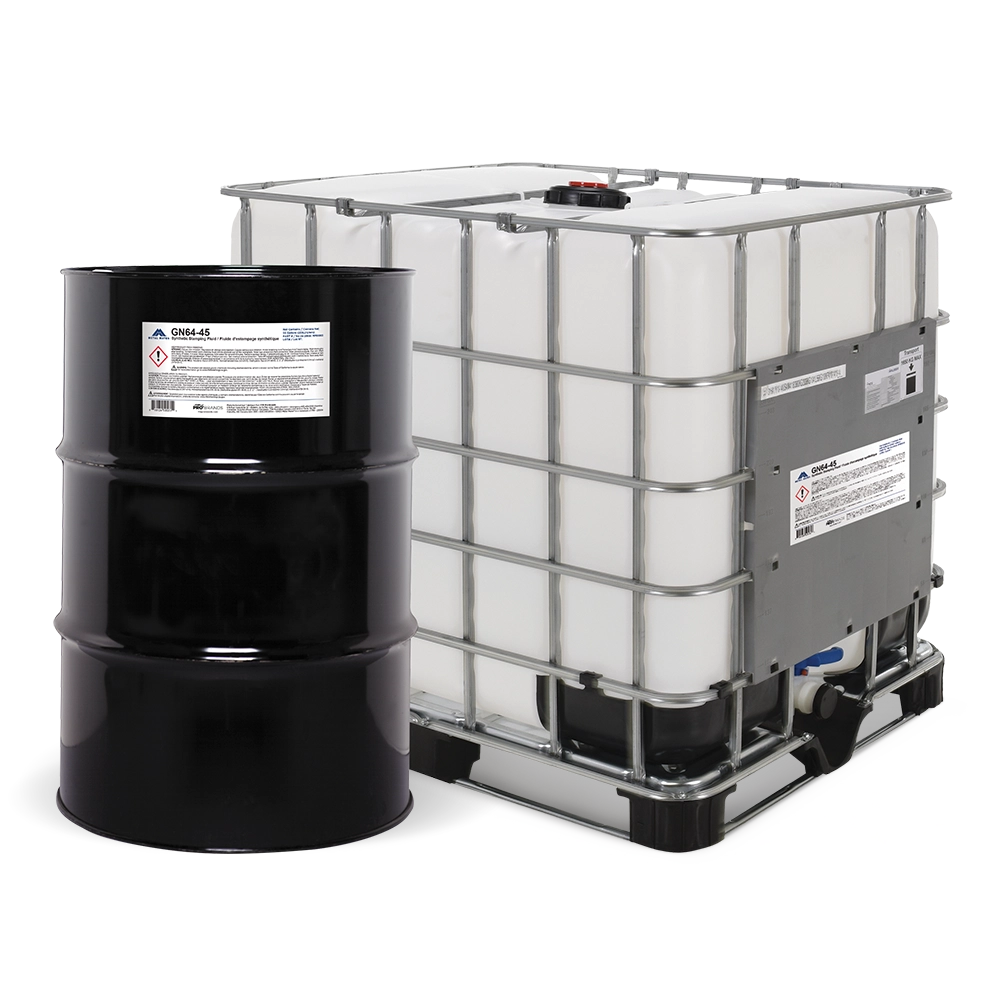

Packaging Details

Part No. US Container Type Units/Case Color
MM9002 5 gal pail 1 clear to amber brown

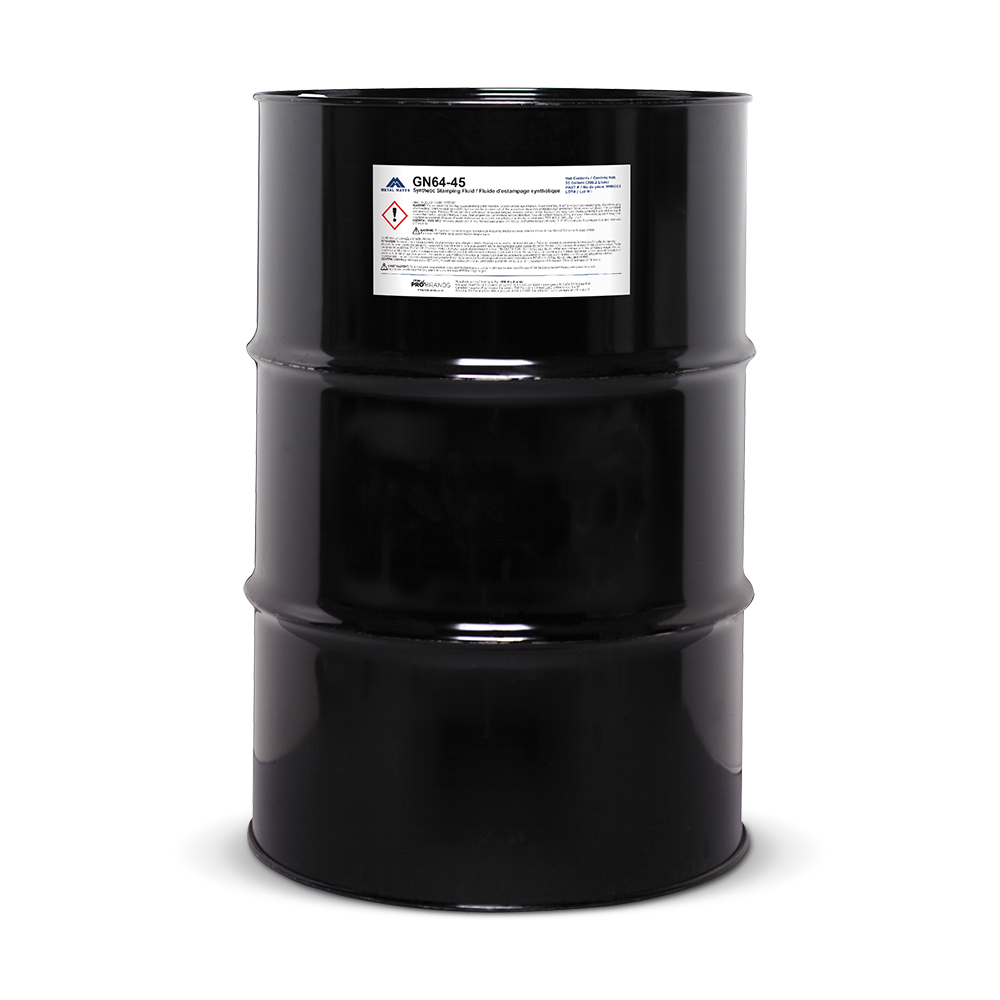

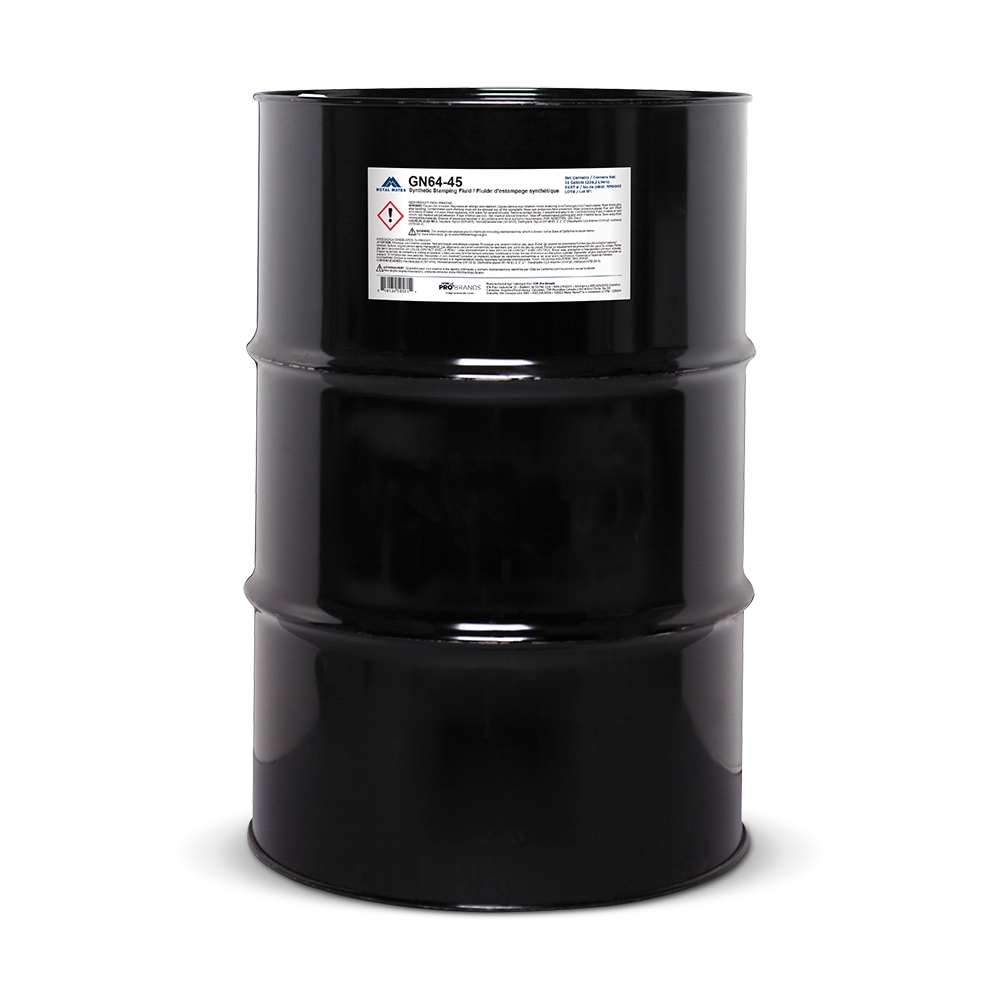

MM9003 55 gal drum 1 clear to amber brown

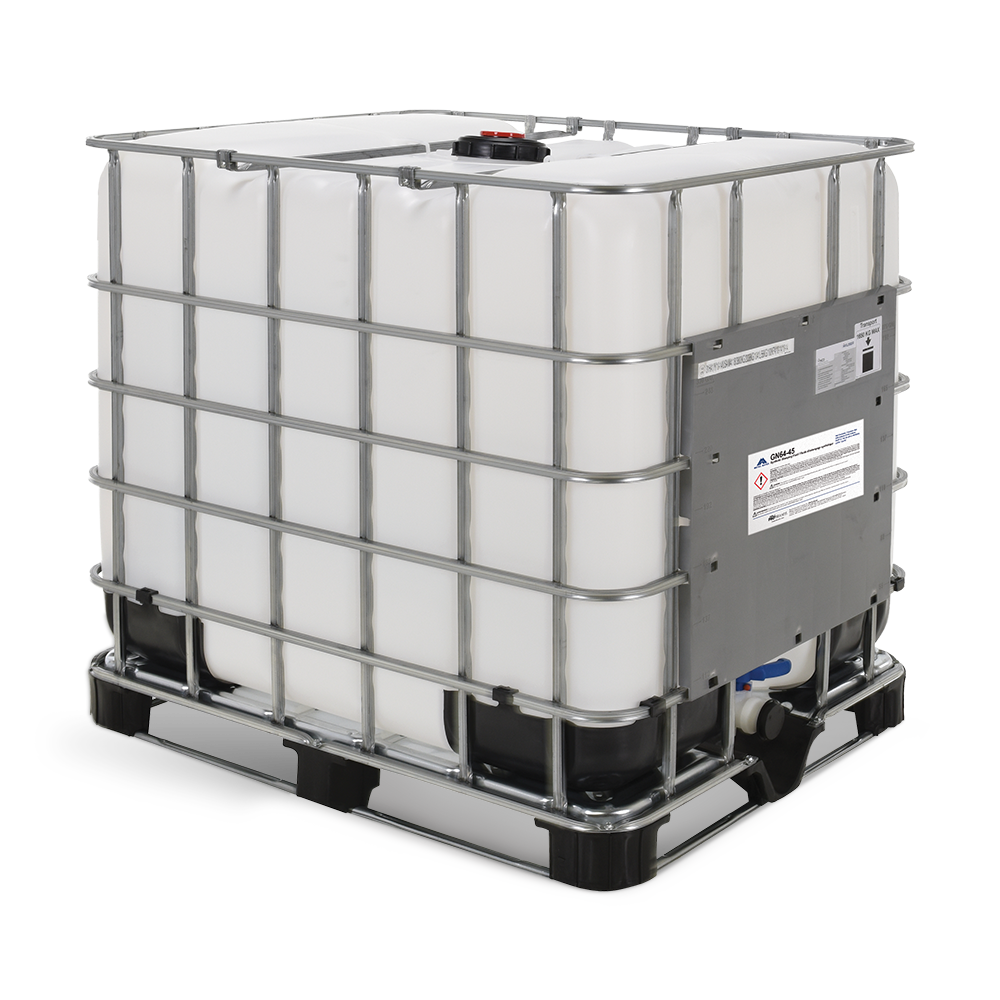

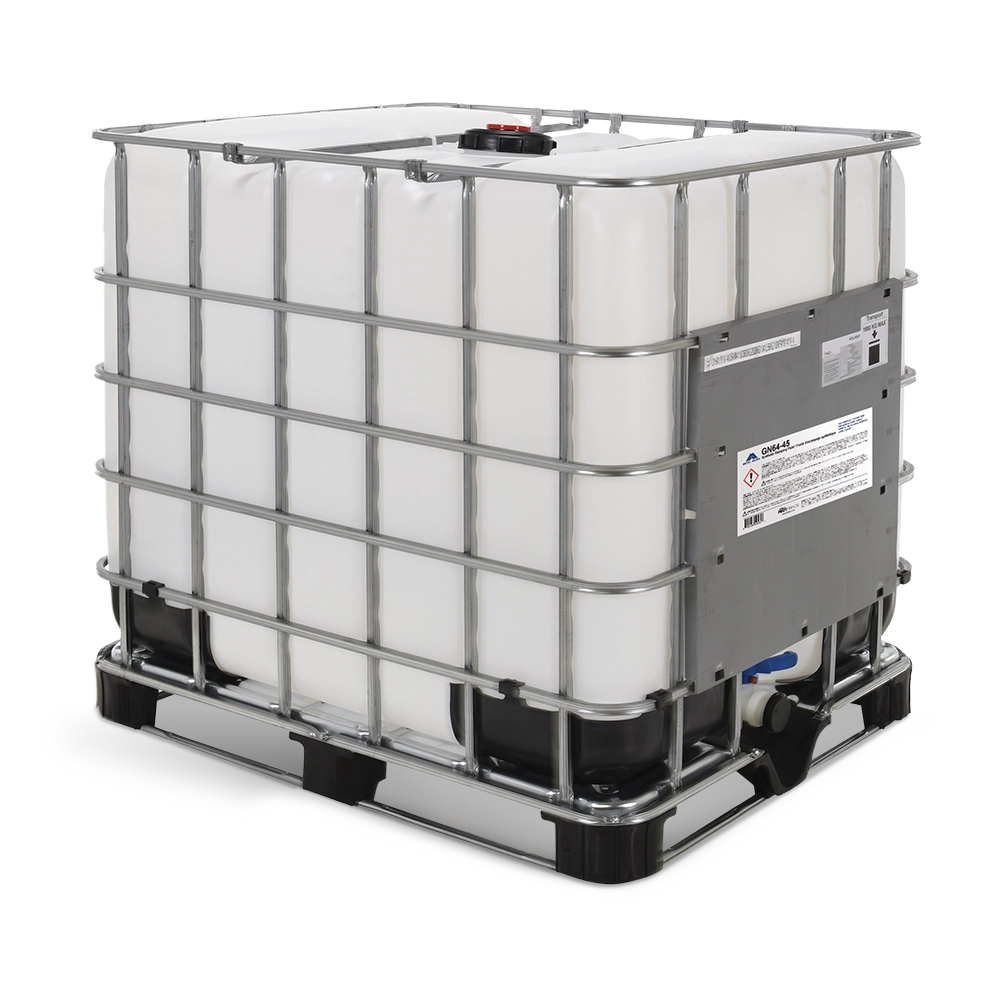

MM9006 330 gal tote 1 clear to amber brown

Search for discontinued products in the SDS Finder


Handling Use appropriate safety equipment. Use with adequate ventilation. Avoid contact with eyes, skin
and clothing. Keep away from extreme heat. Keep container closed when not in use.
Storage Store away from extreme heat, flame, or ignition sources. Pressure build up may occur due to heat
exposure or temperature change. Release pressure by slowly opening container.
Physical State liquid
Odor typical, mild
pH at 10% 9.3
Specific Gravity 1.07
Boiling Point 212F (100C)
Vapor Pressure <1 mmHg
Vapor Density >1
Disposal Information Absorb on suitable material (see Section 8) and follow procedures listed below. Dispose of in a manner that is recommended by local, state, provincial and federal laws and
Prop 65 Warning No
Density (8.9 lbs/gal)
Refractometer Readings 2-10 RI
Dilution Ratios 3:1 to15:1
Directions Dilute Metal Mates GN-64 with water to suit the specific application.
Light to Moderate-Duty: 5:1 to 10:1 (20-10%)
Heavy-Duty: 3:1 to 5:1 (33-20%)
NOTE: These dilution ratios should only be used as general guidelines and are not exact specifications. Plea
