HDP HSS Severe-Duty HSS Stamping Lubricant

Metal Mates HDP-HSS combines the highest extreme pressure, barrier, and anti-wear additives with corrosion protection to work effectively in high strength steel and other severe-duty deep drawing, stamping, punching, flanging, and forming operations.

This semi-synthetic lubricant combines extreme pressure, barrier, and anti-wear additives in a formulation that is ideal for difficult forming, stamping, and drawing operations. HDP-HSS offers all the advantages of soluble oils and synthetics without their disadvantages in heavy-duty applications.  Provides excellent physical and chemical lubricity without leaving a heavy oil residue (like soluble oils and synthetics do) and it won’t turn sticky or gummy on parts and dies.

Easy clean-up with no pre-weld wash needed. Recommended for use with 0.200" - 0.330" thick cold-rolled, electro-galvanized (galvanneal), hot-dip galvanized, stainless, high-strength steel (HSS), and ultra-high-strength steels (UHSS).  Can be diluted for use with materials down to 0.035"

FEATURES

  • Longer die and punch life
  • Designed for HSS/UHSS & heavy-duty operations
  • Provides a chemical barrier that doesn't wipe off during press operation
  • No cleaning required before welding
  • Excellent rust protection
  • Reduces scrap
  • Improves part quality
  • Eliminates scoring and cracking
  • Won’t build up on dies
  • Cleaner, safer work environment

APPLICATIONS

  • Heavy & Severe-Duty Stamping Applications including:
  • Excellent for all heavy-gauge components
  • Hole punching through SS, UHSS, etc.
  • UHSS Frame Rails
  • Please call for consultation on specific applications

Packaging Details

Part No. US Net Contents Container Type Units/Case Color
MM3302 5 gal pail 1 creamy tan

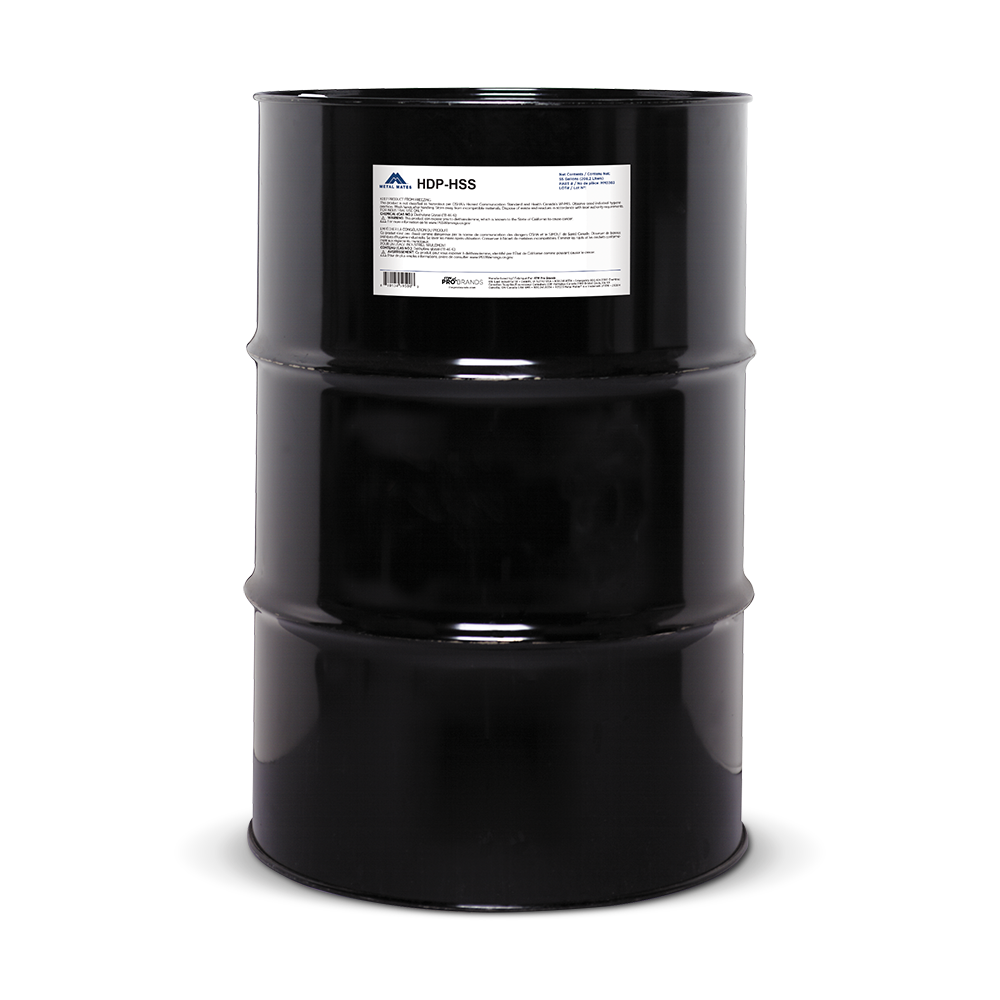

MM3303 55 gal drum 1 creamy tan

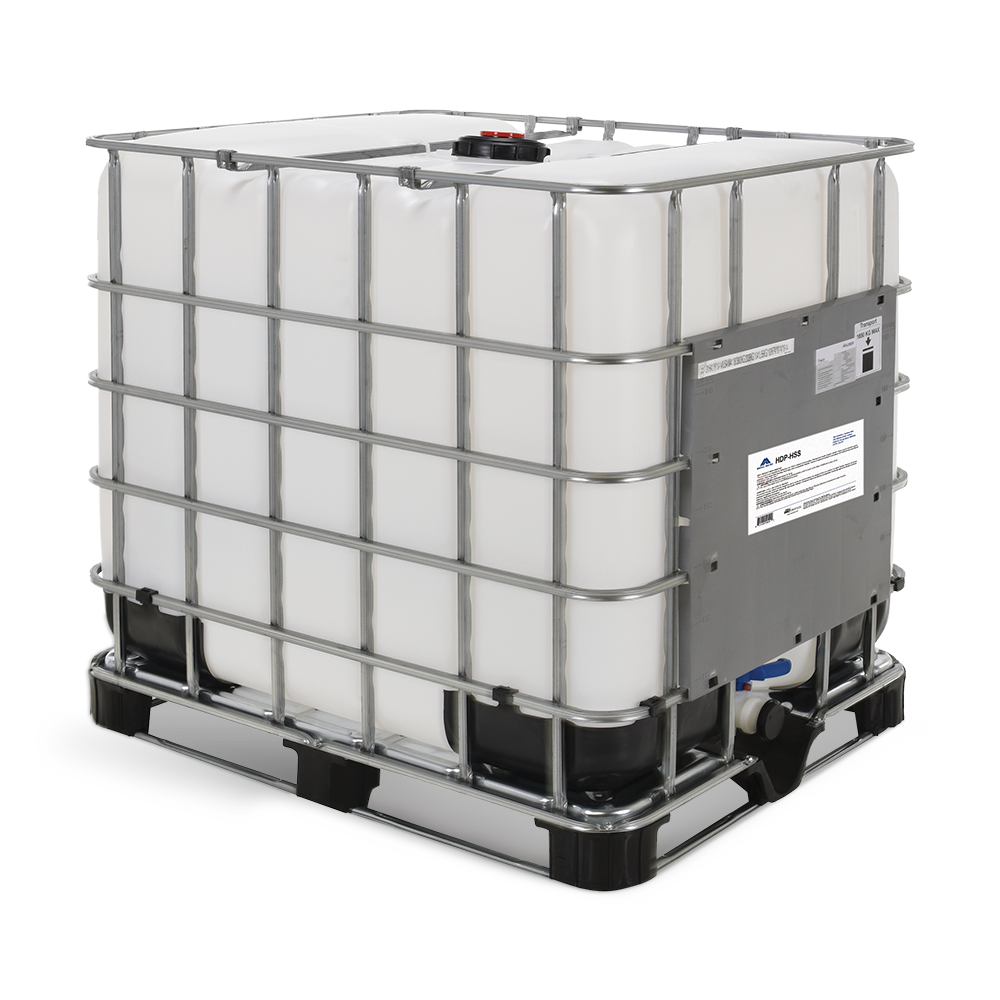

MM3306 330 gal tote 1 creamy tan

Search for discontinued products in the SDS Finder

Properties

Appearance / Physical State Varies
Odor mild
pH Value 7.4-8.6 at 10%
Specific Gravity 1.02
Flash Point >200F (>93C)
Boiling Point / Range 212F (100C)
Vapor Pressure <1
Vapor Density Heavier than air
Prop 65 Warning No
Total Chlorine Y
Refractometer Readings 6-10 RI
Dilution Ratio Typical Dilution: 3:1 to 6:1 (33-17%)
Dry Time < 2 minutes; *Drying time may vary depending on film thickness
